An all-dielectric stranded loose tube cable with two black polyethylene jackets and a fibreglass yarn strength layer between them, which also gives rodent protection. Designed for direct burial and lashed aerial installation.
Construction
- 2 to 288 fibres, 250 µm coloured
- Gel-filled loose tubes
- Central strength member: FRP (fibreglass-reinforced plastic)
- Inner jacket: black UV- and water-resistant polyethylene (PE)
- Strength member: overall water-blocking fibreglass yarn
- Outer jacket: black UV- and water-resistant polyethylene (PE)
Why use it
- All-dielectric construction, up to 288 fibres
- Gel-filled loose tubes protect the fibres
- Fibreglass yarn gives high tensile strength
- Double jacket gives extra mechanical protection
- UV- and water-resistant
Typical uses
Inter-building voice and data backbones; duct, underground conduit and direct burial.
Optical characteristics
| fibre type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850nm | <3.0dB/km | <3.3dB/km | ||
| 1300nm | <1.0dB/km | <1.0dB/km | |||
| 1310nm | <0.36dB/km | <0.40dB/km | |||
| 1550nm | <0.22dB/km | <0.23dB/km | |||
| Bandwidth | 850nm | > 500 MHz-km | > 200 MHz-km | ||
| 1300nm | > 500 MHz-km | > 500 MHz-km | |||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| DC cable cut-off wavelength | <1260nm | <1450nm | |||
Mechanical specifications
| FibreCount | Nominal Diameter(mm) | Nominal weight(kg/km) | Maximum fibre per tube | Maximum number of (tubes + charges) | Allowable tensile load(N) | Permissible crushing strength (N/100 mm) | ||
|---|---|---|---|---|---|---|---|---|
| Short term | Long term | Short term | Long term | |||||
| 2~30 | 12.0 | 115 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 12.6 | 120 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 13.2 | 140 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 14.8 | 160 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 16.3 | 190 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| >144 | Available upon customer request | |||||||
Packing

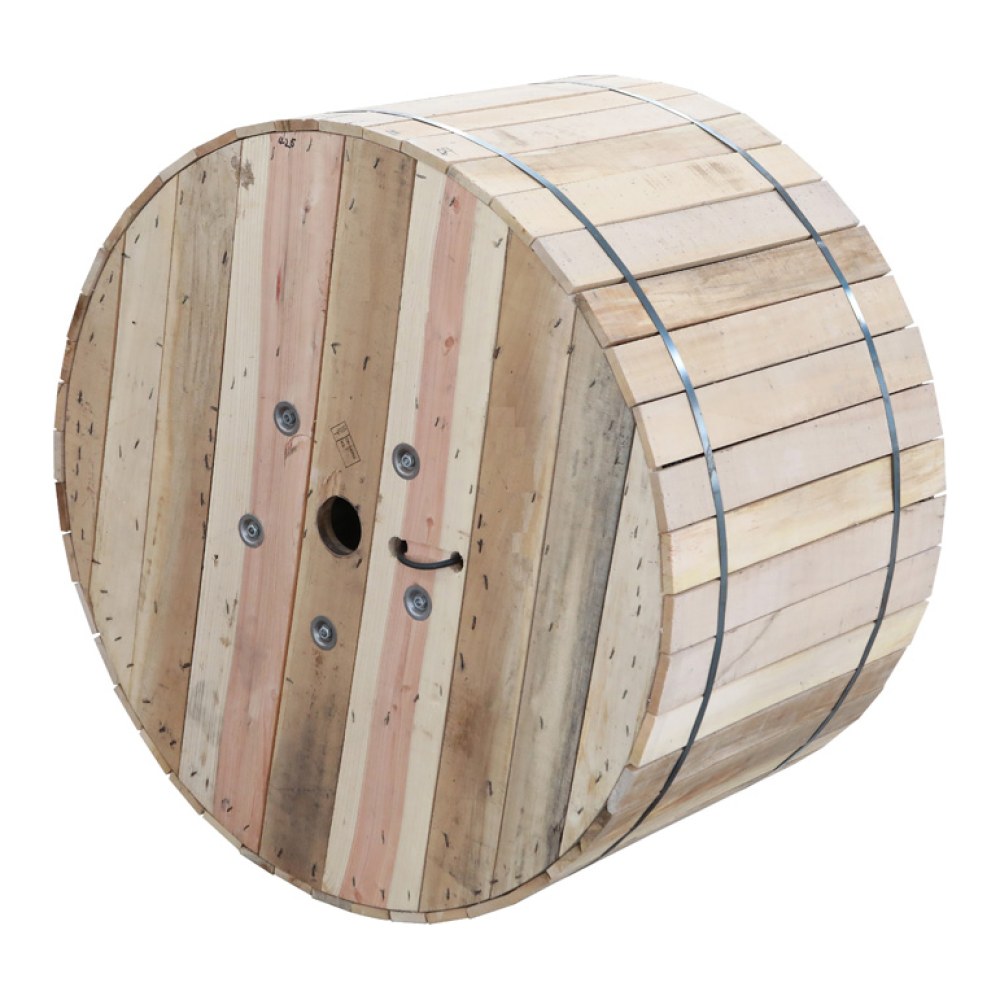

Plywood or fumigated wooden drum.
