GYTS is a stranded loose tube outdoor cable with steel tape armour and a black polyethylene jacket, for backbone runs. Gel-filled loose tubes are stranded around a central FRP strength member, with jelly in the core to stop water getting in and travelling along the cable.
Construction
- 2 to 288 fibres, 250 µm coloured
- Gel-filled loose tubes
- Central strength member: FRP (fibreglass-reinforced plastic)
- Steel tape armour
- Black UV- and water-resistant polyethylene (PE) outer jacket
Why use it
- Gel-filled loose tubes protect the fibres
- UV- and water-resistant
Typical uses
Inter-building voice and data backbones; duct, underground conduit and direct burial.
Optical characteristics
| Fibre Type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max FibrePer Tube | Max No. of(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.7 | 76 | 6 | 5 | 1500 | 600 | 1000 | 300 |
| 32~48 | 10.7 | 90 | 8 | 6 | 1500 | 600 | 1000 | 300 |
| 50~72 | 11.6 | 110 | 12 | 6 | 2000 | 600 | 1000 | 300 |
| 74~96 | 13.0 | 135 | 12 | 8 | 2000 | 600 | 1000 | 300 |
| 98~144 | 15.1 | 190 | 12 | 12 | 2000 | 600 | 1000 | 300 |
Packing

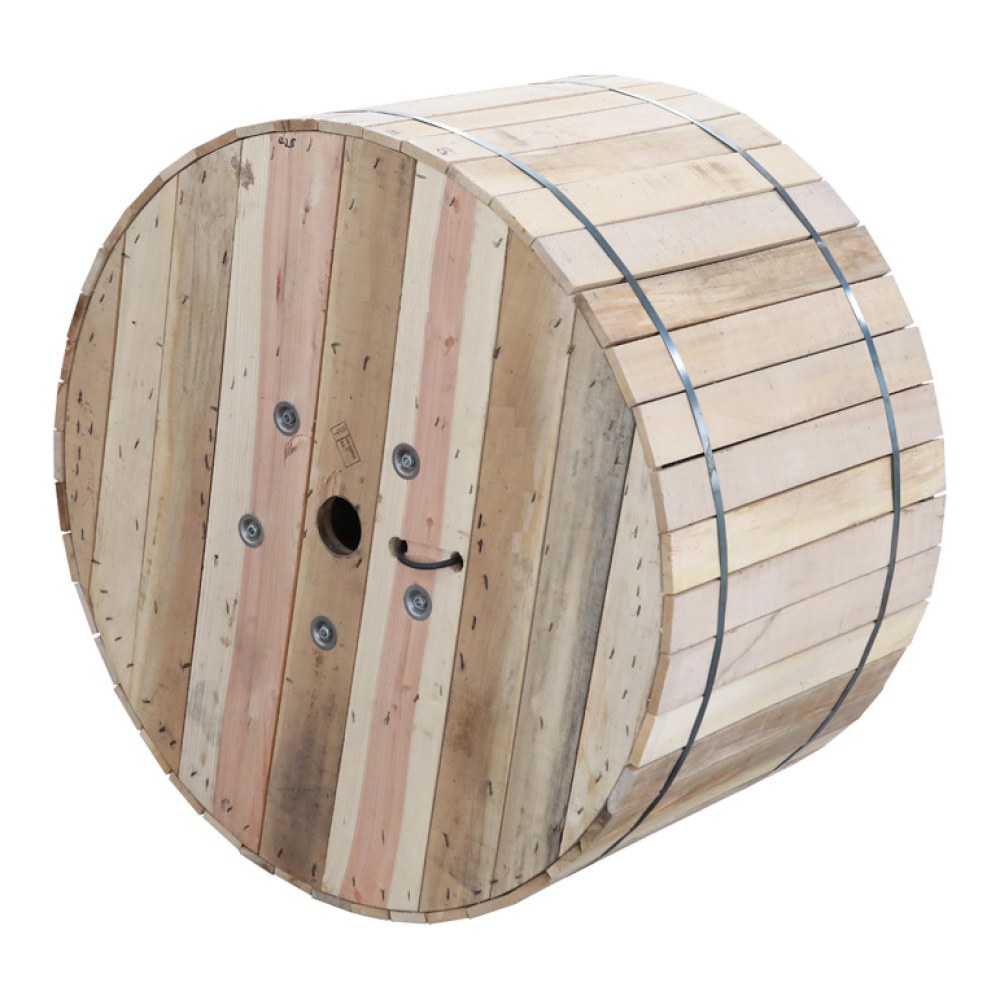

Plywood or fumigated wooden drum.
