GYXTS is a central loose tube cable with two layers of armour, steel wire then steel tape, under a single black polyethylene jacket. An economical armoured option for low fibre counts, up to 24 fibres, suited to duct and underground conduit.
Construction
- 2 to 24 fibres, 250 µm coloured
- Single gel-filled central loose tube
- Inner armour: steel wire
- Outer armour: steel tape
- Black UV- and water-resistant polyethylene (PE) outer jacket
Why use it
- Gel-filled central tube protects the fibres
- Steel wire armour gives high tensile strength and crush resistance
- Compact, easy to install
- UV- and water-resistant
Typical uses
Inter-building voice and data links; duct, underground conduit and direct burial; FTTx.
Optical characteristics
| Fibre Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
|---|---|---|---|---|---|---|
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight （kg/km） | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 2-12 | 8 | 95 | 2000 | 800 | 1500 | 600 |
| 14-24 | 8.7 | 114 | 2100 | 900 | 1500 | 600 |
Packing

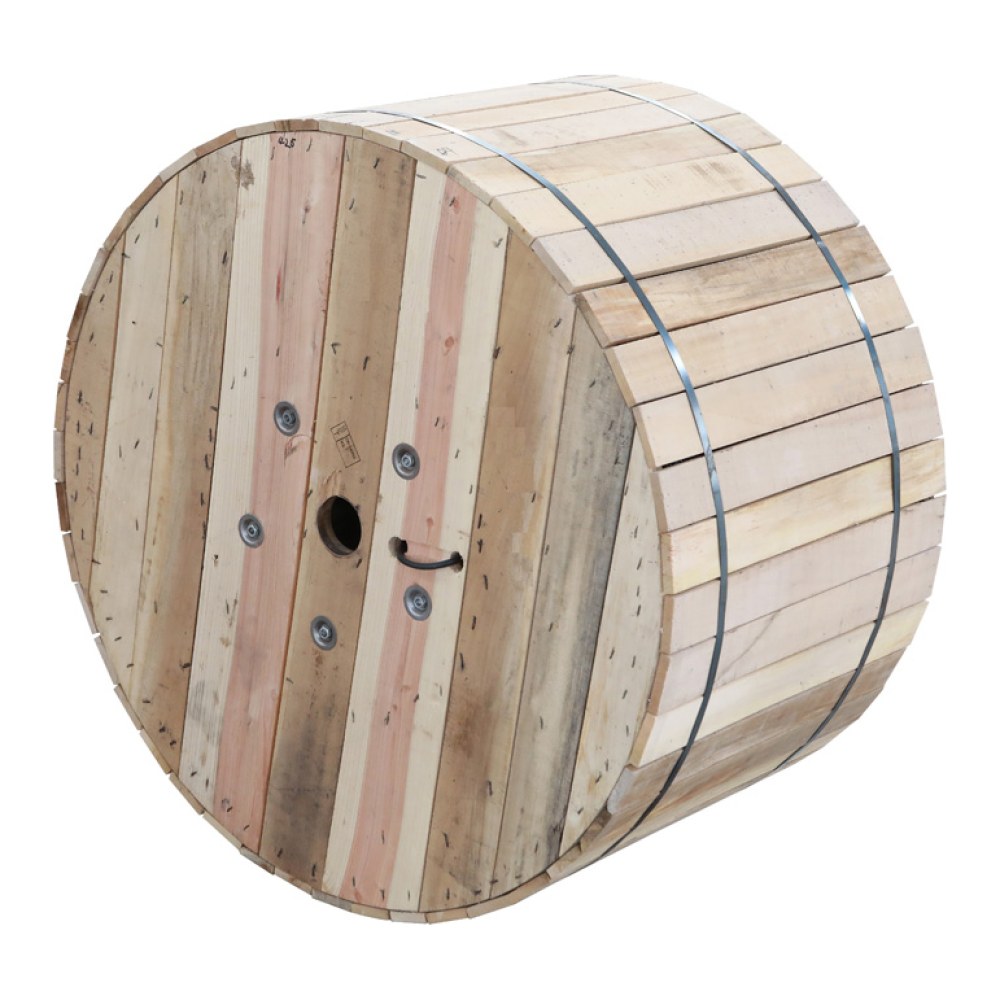

Plywood or fumigated wooden drum.
