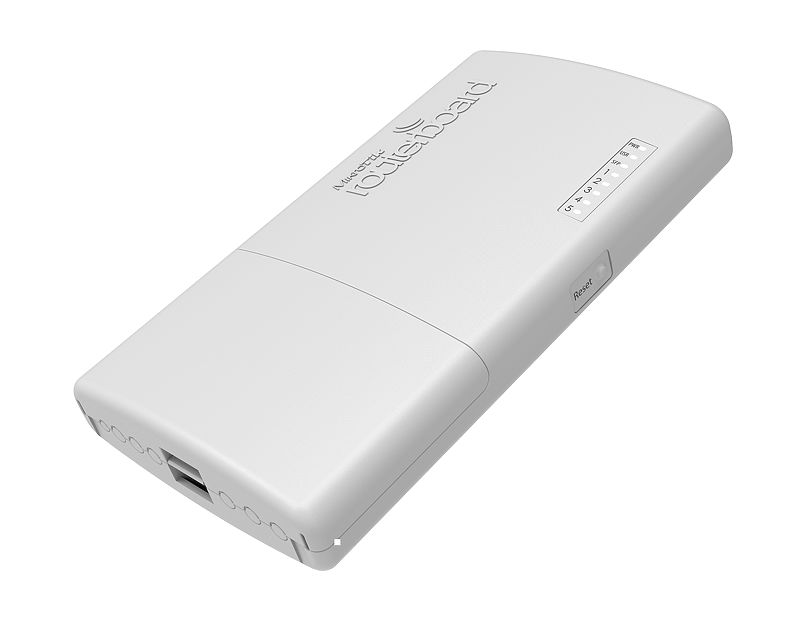

Mikrotik RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about. It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.

Product code: RB960PGS-PB
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 125 x 52 x 225 mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 54 W
Max power consumption without attachments: 6 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-57 V

PoE-out ports: Ether2-Ether5
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1 A
Max out per port output (input 30-57 V): 450 mA
Max total out (A): 2 A

10/100/1000 Ethernet ports: 5

SFP ports: 1

PCB temperature monitor: Yes
Voltage Monitor: Yes

Certification: CE, EAC, ROHS
