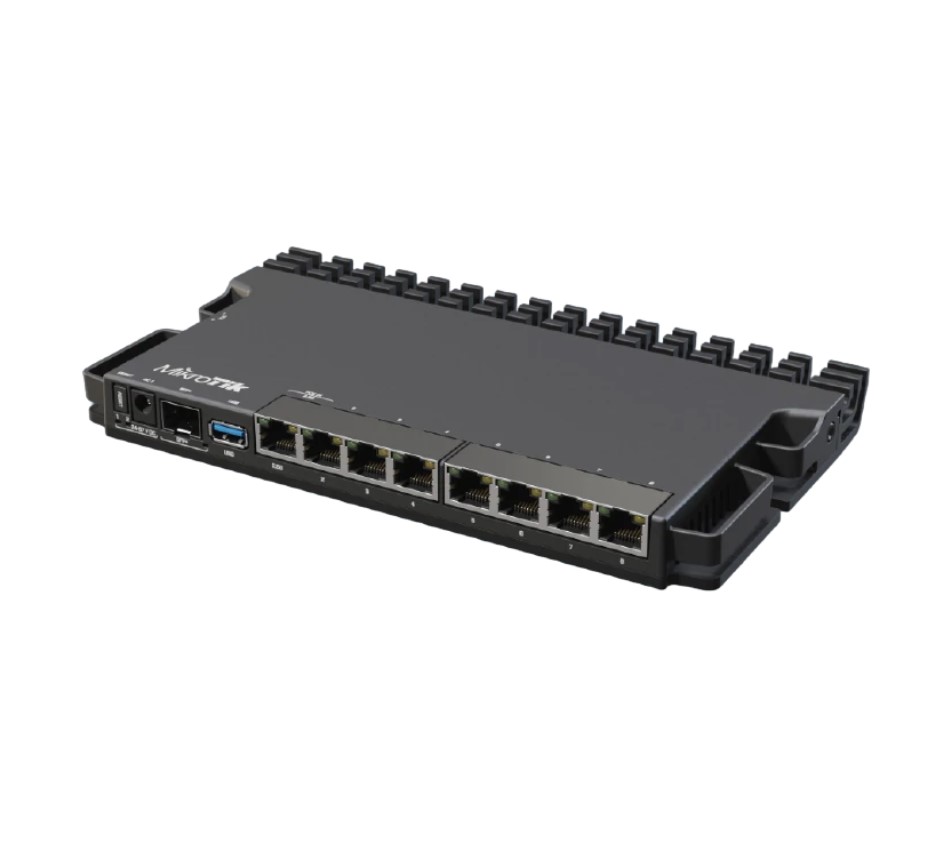

Mikrotik RB5009UG+S+IN 4x 1,4 GHz, 7x Gbit LAN, 1x 2.5Gbit Lan, 1x SFP+, 1GB NAND
Mikrotik RB5009UG+S+IN 4x 1,4 GHz, 7x Gbit LAN, 1x 2.5Gbit Lan, 1x SFP+, 1GB NAND
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Specifications
Product code: RB5009UG+S+IN
Architecture: ARM 64bit
CPU: 88F7040
CPU core count: 4
CPU nominal frequency: 350-1400 (auto) MHz
RouterOS license: 5
Operating System: RouterOS (v7 only)
Size of RAM: 1 GB
Storage size: 1 GB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Powering
Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage: 24-57 V
2-pin terminal input Voltage: 24-57 V
Max power consumption: 20 W
Max power consumption without attachments: 14 W
FAN count: Passive
PoE in: 802.3af/at
PoE in input Voltage: 24-57 V
Ethernet
10/100/1000 Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Fibre
SFP+ ports: 1
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1
