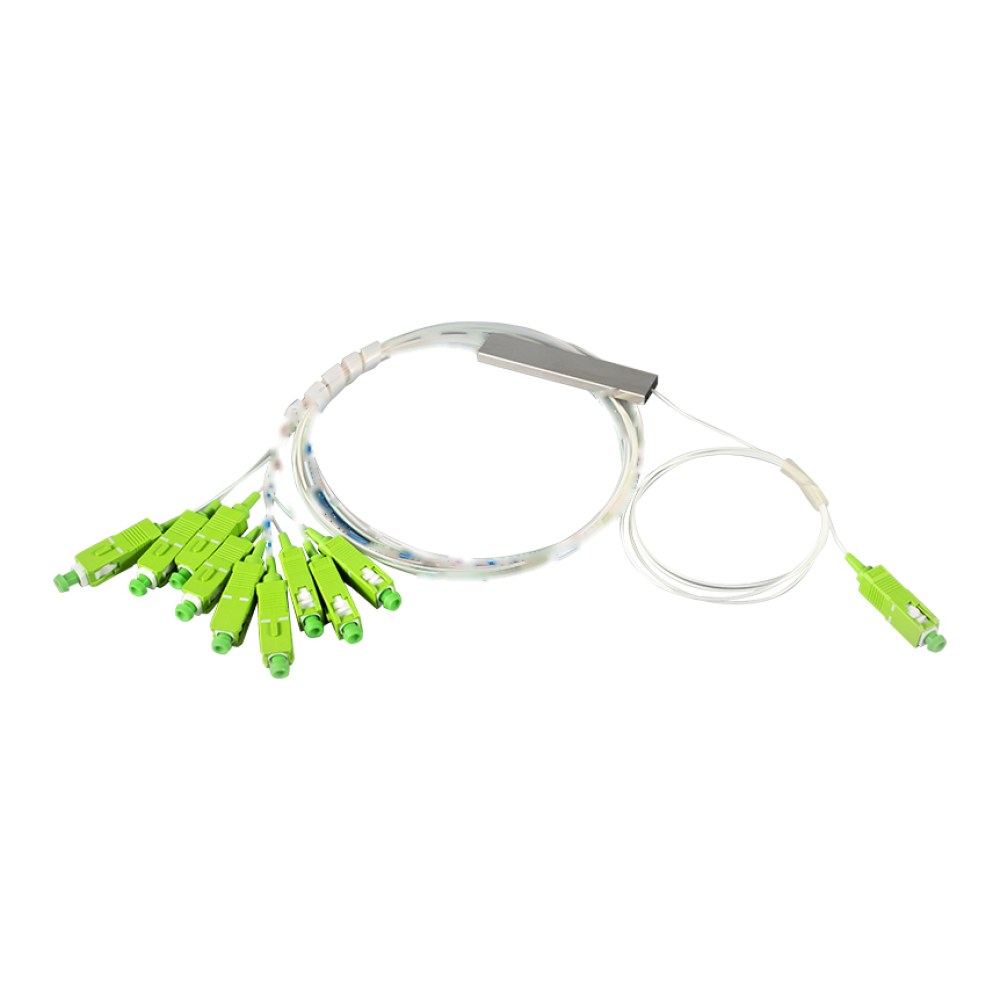

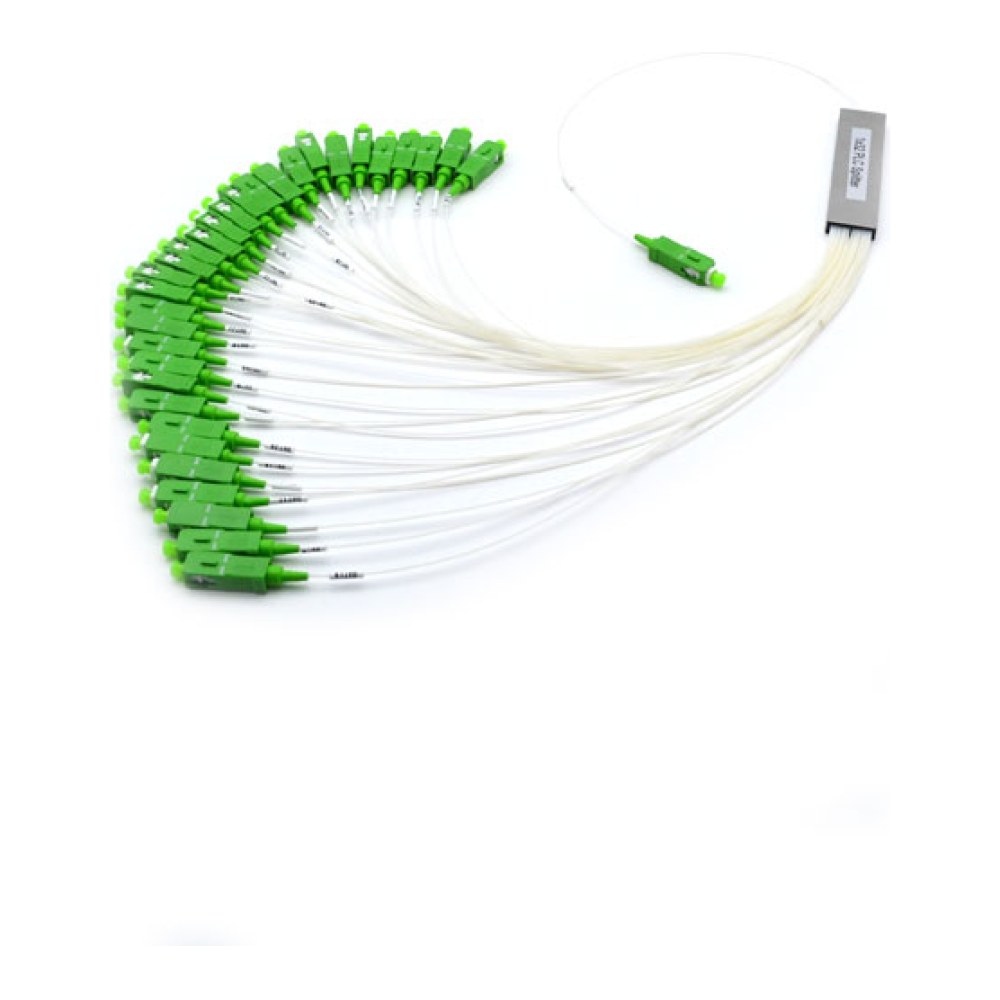

A micro-tube PLC (planar lightwave circuit) splitter in split ratios of 2, 4, 8, 16, 32 and 64. Outputs are 0.9 mm fibres in a compact, easy-to-use package. For FTTx, LAN/WAN and CATV networks.
Features
- Low insertion loss
- Low PDL
- Compact design
- Good channel-to-channel uniformity
- Wide operating wavelength: 1260 nm to 1650 nm
- Wide operating temperature: -40℃ to 85℃
Specifications
| Wavelength(nm) | 1260-1650 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
| Insertion Loss(with connector)(dB) | ≤4.2 | ≤7.7 | ≤11.2 | ≤14.2 | ≤17.5 | ≤21.5 | ≤8.3 | ≤12 | ≤15 | ≤17.7 |
| Insertion Loss(W/O connector)(dB) | ≤4.0 | ≤7.4 | ≤10.7 | ≤13.7 | ≤16.9 | ≤21 | ≤7.8 | ≤11.5 | ≤14.5 | ≤18.2 |
| Uniformity (dB) | ≤0.4 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.7 | ≤1.7 | ≤1.7 | ≤2.2 | ≤2.7 |
| PDL(dB) | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.4 |
| Return Loss(dB) | >50 | |||||||||
| Directivity(dB) | >55 | |||||||||
| Temperature Range (℃) | 40~+75 | |||||||||
| Storage Temperature(℃) | 40~+85 | |||||||||
Options
- Versions: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
- Connectors: SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC, or none
- Pigtail length can be customised; standard is 1.5 m
Packing
Boxed, on pallets.
