A central loose tube outdoor cable with steel wire armour between two black polyethylene jackets. The gel-filled tube stops water getting in and travelling along the cable; the double jacket and armour protect against rodents.
Construction
- 2 to 24 fibres, 250 µm coloured
- Single gel-filled central loose tube
- Inner jacket: black UV- and water-resistant polyethylene (PE)
- Steel wire armour
- Outer jacket: black UV- and water-resistant polyethylene (PE)
Why use it
- Double jacket and armour protect against rodents
- Gel-filled central tube protects the fibres
- Steel wire armour gives high tensile strength and crush resistance
- Compact, easy to install
- UV- and water-resistant
Typical uses
Inter-building voice and data links; duct, underground conduit and direct burial; FTTx.
Optical characteristics
| Fibre Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
|---|---|---|---|---|---|---|
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 1~12 | 8.5 | 117 | 2200 | 900 | 1500 | 600 |
| 14~24 | 9.1 | 129 | 2300 | 1000 | 1500 | 600 |
Packing

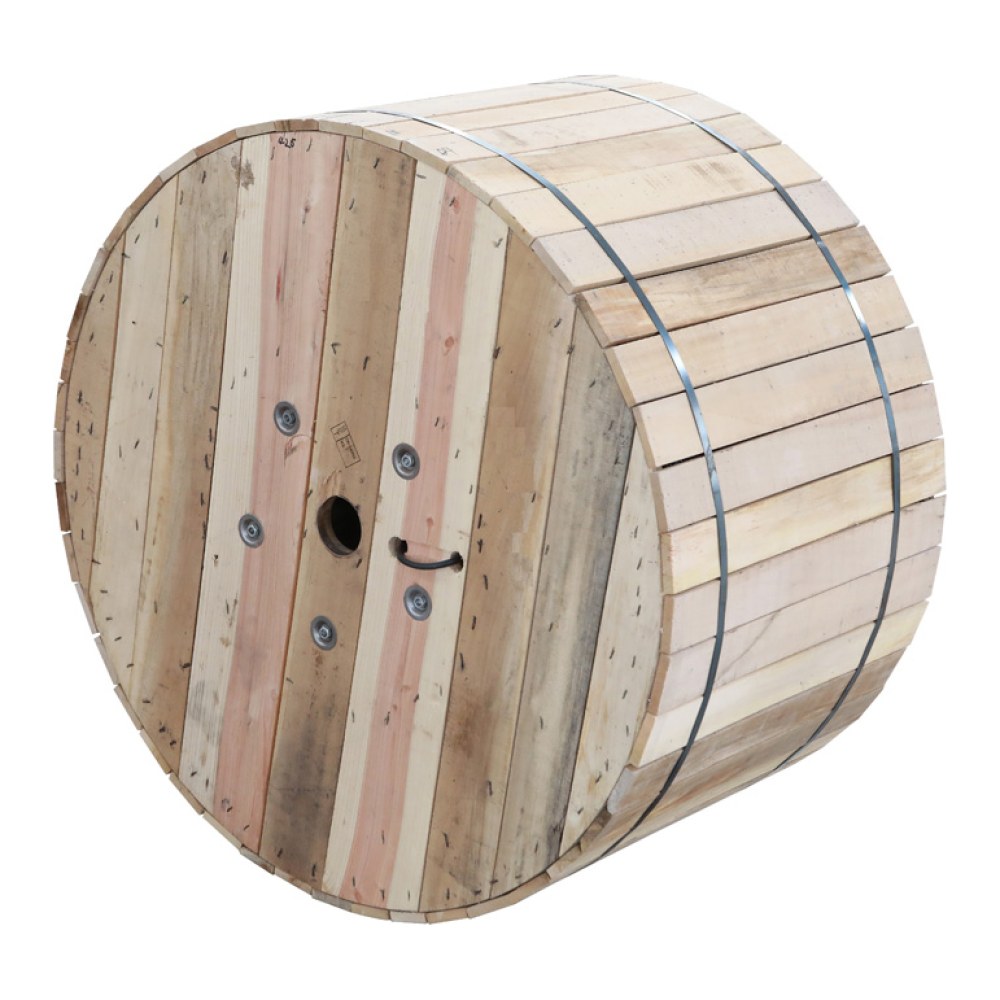

Plywood or fumigated wooden drum.
