An indoor/outdoor central loose tube cable with corrugated steel tape (CST) armour, for up to 24 fibres. The small diameter and light weight save duct space, and the armour resists rodents. Suits campus (inter-building) and building (intra-building) backbones.
Construction
- 2 to 24 fibres, 250 µm coloured
- Single gel-filled central loose tube
- Strength member: overall water-blocking fibreglass yarn
- Corrugated steel tape armour
- UV- and flame-resistant LSZH outer jacket
Why use it
- Gel-filled central tube protects the fibres
- Fibreglass yarn gives high tensile strength
- Steel tape armour resists rodents
- UV- and water-resistant
Typical uses
Inter-building and in-building backbones; duct, underground conduit and direct burial.
Optical characteristics
| Fibre Type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | |||
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 59 | 1200 | 400 | 1000 | 300 |
| >12 | ||||||
Packing

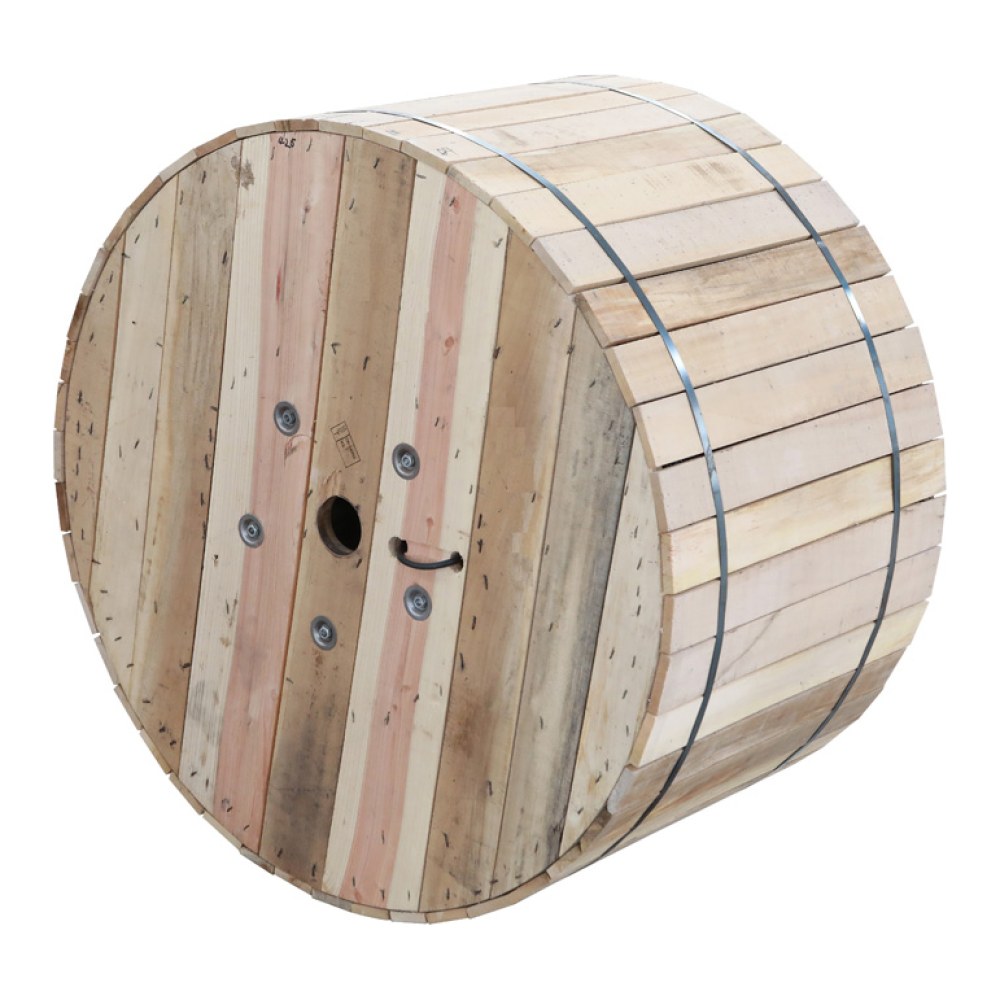

Plywood or fumigated wooden drum.
