A self-supporting figure-8 aerial fibre cable with steel tape armour, for backbone and access runs. Gel-filled loose tubes are stranded around a central strength member, with jelly or water-blocking material in the core, then wrapped in corrugated steel tape. The armoured core and a galvanised steel messenger share one black polyethylene jacket.
Construction
- 2 to 288 fibres
- Gel-filled loose tubes
- Corrugated steel tape armour
- Messenger: steel wire or steel strand
- Black UV- and water-resistant polyethylene (PE) jacket
Features
- Good mechanical and temperature performance
- High-strength, hydrolysis-resistant loose tube
- Special tube filling compound protects the fibres
- Compact structure stops the loose tubes shrinking back
- PE sheath protects against UV
- Good crush resistance for aerial installation
Typical uses
Aerial installation on backbone and access networks.
Mechanical specifications: GYXTC8S, 2–24 fibres
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.6*15.6 | 142 | 7000 | 4000 | 1000 | 300 |
| >12 | ||||||
Mechanical specifications: GYTC8S, 2–288 fibres
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max FibrePer Tube | Max No. of(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) | ||
|---|---|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 10.0*18.0 | 183 | 6 | 5 | 7000 | 4000 | 1000 | 300 |
| 32~48 | 10.7*18.8 | 206 | 6 | 6 | 7000 | 4000 | 1000 | 300 |
| 50~72 | 11.6*19.4 | 226 | 12 | 5 | 7000 | 4000 | 1000 | 300 |
| 74~96 | 13.0*20.0 | 256 | 12 | 6 | 7000 | 4000 | 1000 | 300 |
| >98 | ||||||||
Packing

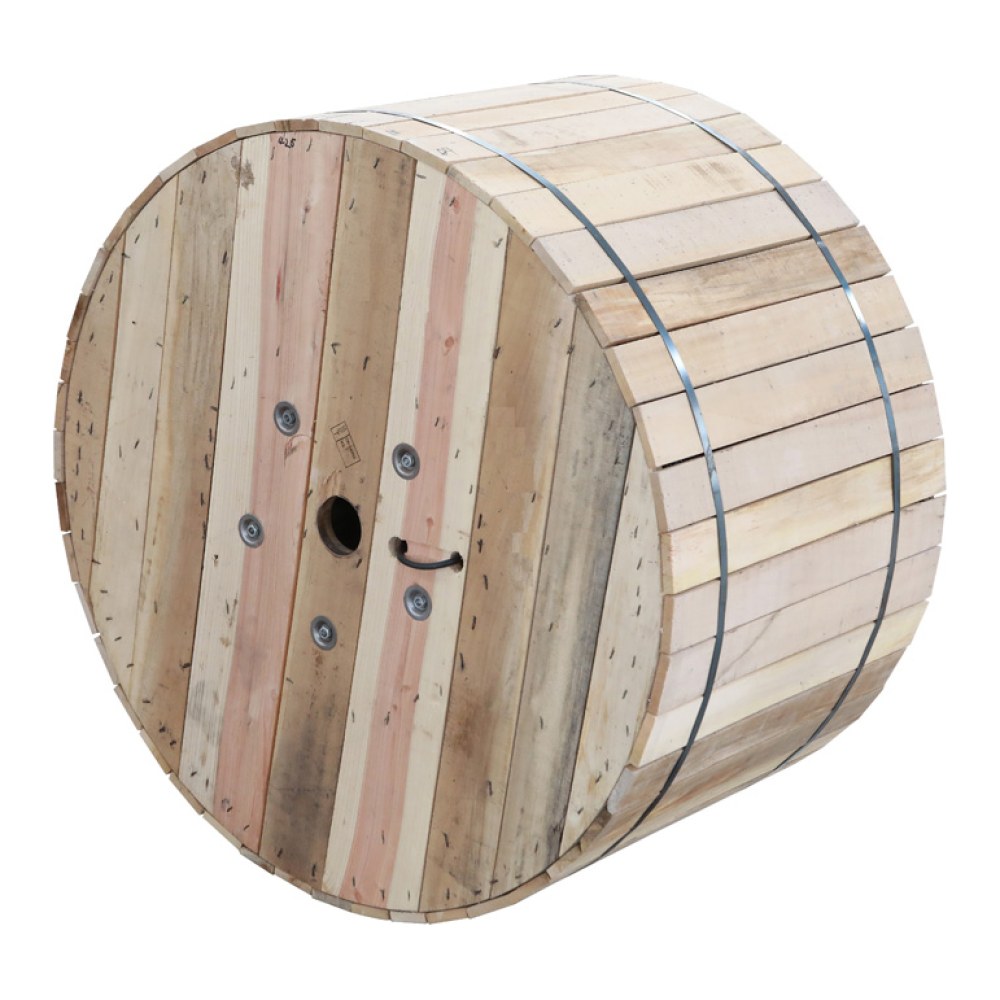

Plywood or fumigated wooden drum.
