A self-supporting figure-8 aerial fibre cable for backbone and access runs. The fibres sit in gel-filled loose tubes stranded around a central strength member, with jelly or water-blocking material in the core to stop water getting in and travelling along the cable. The cable core and a galvanised steel messenger share one polyethylene outer jacket.
Construction
- 2 to 288 fibres, 250 µm coloured
- Gel-filled loose tubes
- Central strength member: FRP (fibreglass-reinforced plastic) or steel wire
- Messenger: steel wire or steel strand
- Black UV- and water-resistant polyethylene (PE) outer jacket
Features
- Good UV and flame resistance
- Figure-8 flat profile, self-supporting
- Compact, soft and flexible; easy to install
- Works with low-cost attachment hardware
Typical uses
Aerial installation on backbone and access networks.
Mechanical specifications: GYXTC8Y, 2–24 fibres
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 6.0*12.5 | 85 | 4000 | 2000 | 200 | 100 |
| >12 | ||||||
Mechanical specifications: GYTC8Y, 2–288 fibres
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibre Per Tube | Max No.of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.2*17.2 | 150 | 6 | 5 | 7000 | 3000 | 1000 | 300 |
| 32~48 | 10.2*18.2 | 172 | 8 | 6 | 7000 | 3000 | 1000 | 300 |
| 50~72 | 11.1*19.1 | 177 | 12 | 6 | 7000 | 3000 | 1000 | 300 |
| 74~96 | 12.4*20.4 | 201 | 12 | 8 | 7000 | 3000 | 1000 | 300 |
| >98 | ||||||||
Packing

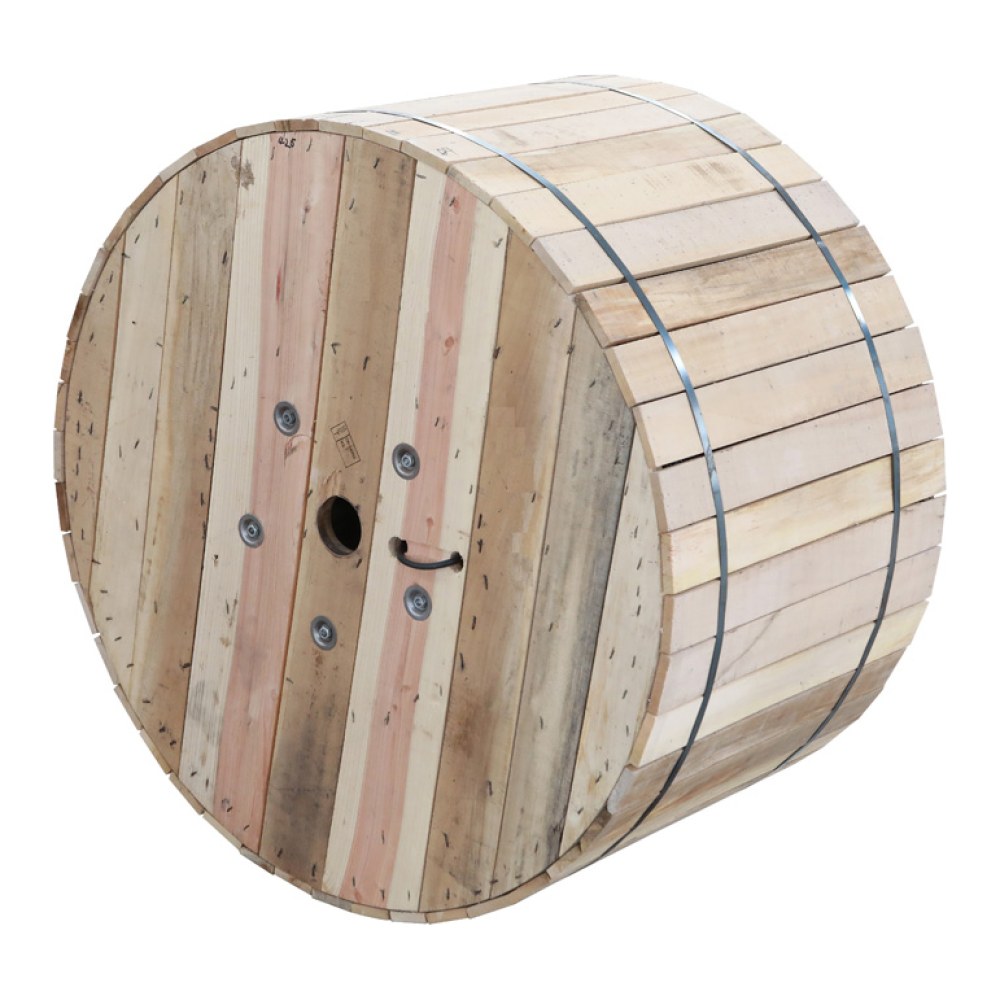

Plywood or fumigated wooden drum.
