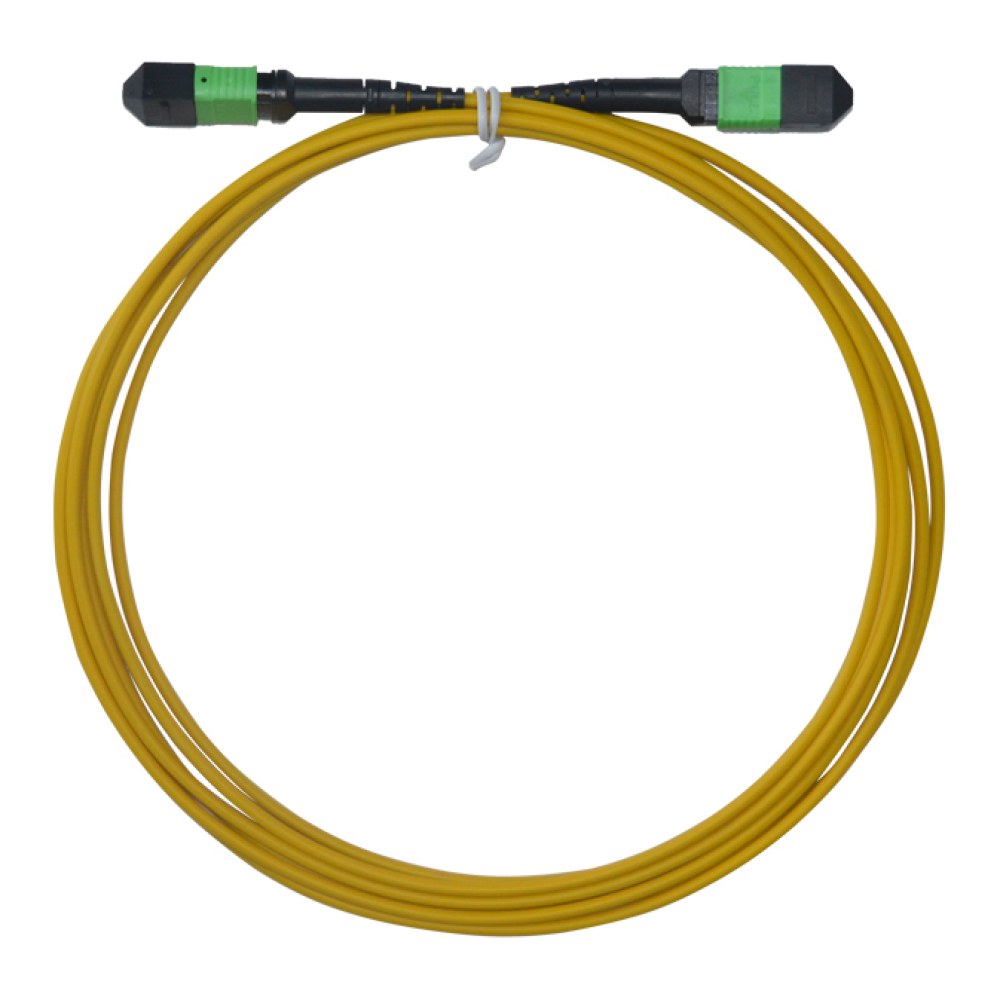

A multi-fibre MPO patch cord with 4, 8 or 12 fibres. Precision-moulded MT ferrules, metal guide pins and precise housings keep the fibres aligned when mated, making installation quicker and cheaper.
Features
- High-density interconnection
- High-precision guide pins for fibre alignment
- Materials meet RoHS requirements
- Riser, plenum and LSZH cable jackets available
About the MT family
The ferrules are made to IEC 61754-5 and the connectors to IEC 61754-7. The family covers:
- MPO or MTP connectors fitted to ribbon (or ribbonised) cable or bare ribbon, with push-pull latching, coupled through an adaptor. MTP adds a removable housing for re-polishing.
- MT ferrules on fibre ribbon, coupled with a spring clamp only.
Multimode connectors are flat polished; single-mode connectors are angle polished at 8°. Other end-face polishes on request.
