GYFXTY-FG is a round, all-dielectric drop cable for fibre-to-the-subscriber builds. It suits self-supporting aerial drops as well as lashed and conduit installation. An overall glass yarn layer adds mechanical protection, and two embedded FRP rods add tensile strength.
Construction
- 2 to 24 fibres, 250 µm coloured
- Two embedded FRP (fibreglass-reinforced plastic) rods
- Strength member: glass yarn
- Black UV- and water-resistant polyethylene (PE) outer jacket
Why use it
- All-dielectric construction
- Gel-filled central tube protects the fibres
- Embedded FRP rods give high tensile strength
- Overall fibreglass yarn adds further tensile strength
- UV- and water-resistant
Typical uses
Inter-building voice and data links; aerial installation; FTTx and access networks.
Optical characteristics
| Fibre Type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | <1260 nm | <1450 nm | |||
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | Aerial Install span with 1%sag | ||||
|---|---|---|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy | |||
| 2~12 | 6.5 | 35 | 1000 | 400 | 1000 | 300 | 80meters | 50meters | 30meters |
| 14~24 | 7.0 | 40 | 1200 | 500 | 1000 | 300 | 70meters | 40meters | 20meters |
Packing

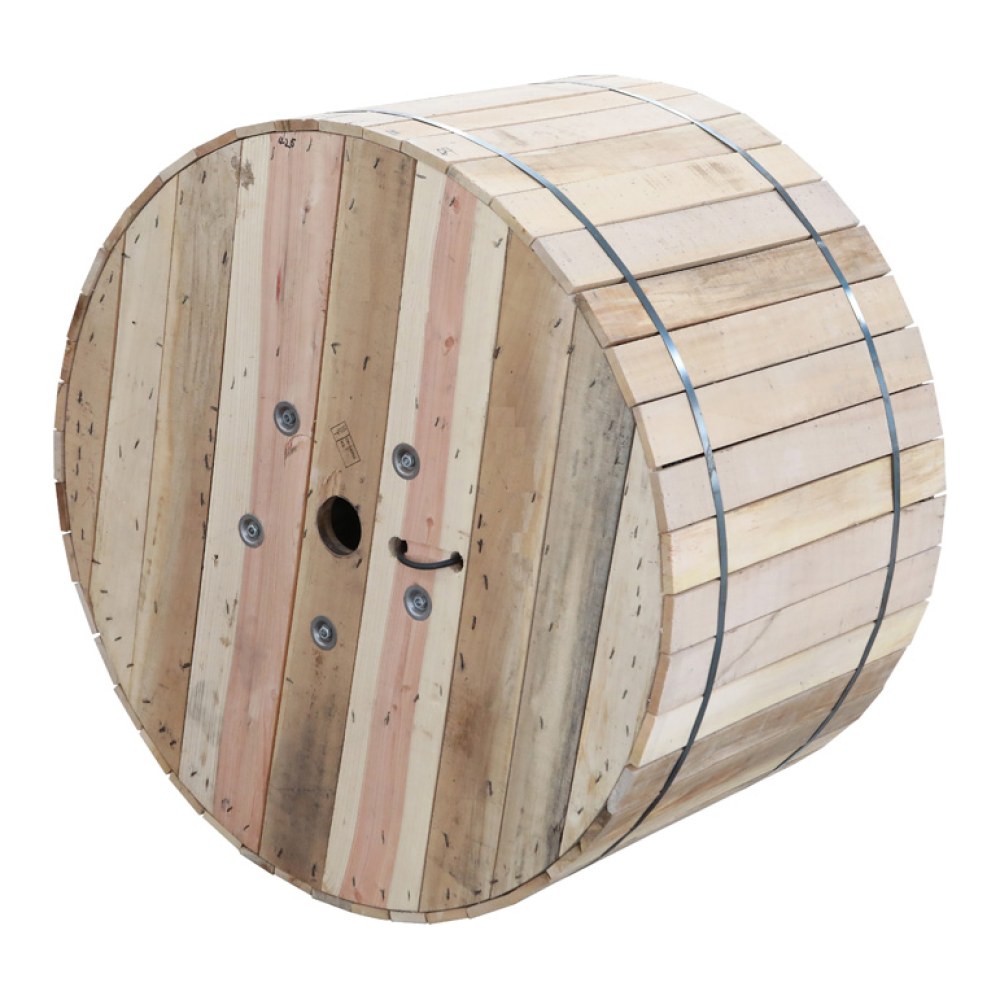

Plywood or fumigated wooden drum.
