ASU is an unarmoured round aerial cable with two FRP strength members and a black polyethylene outer jacket, for short-span aerial and duct runs.
Construction
- 250 µm coloured fibres in a PBT loose tube
- Two FRP (fibreglass-reinforced plastic) strength members
- Extruded PE outer sheath
Features
- Small size and light weight
- Two FRP strength members give good tensile performance
- Gel-filled or gel-free; good water resistance
- High fibre capacity
Typical uses
Short-span aerial and duct installation.
Optical characteristics
| Fibre Type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Packing

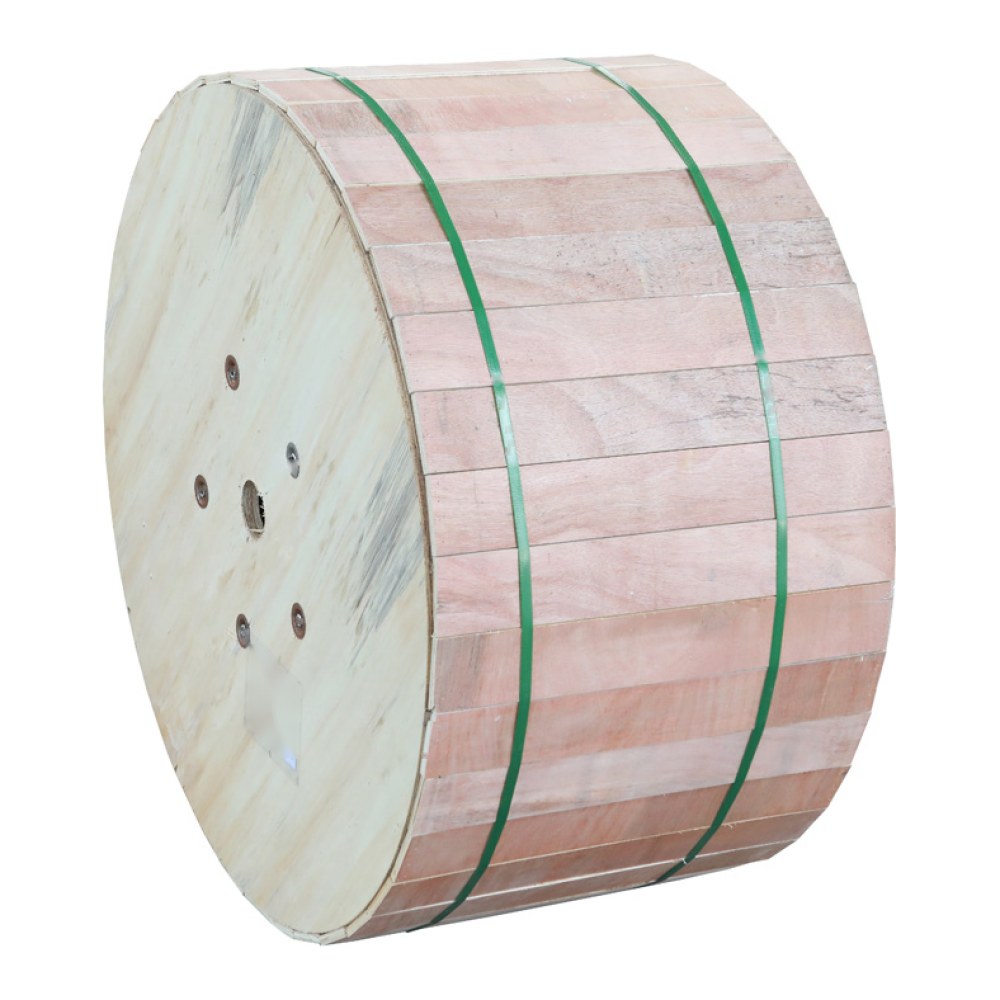

Plywood or fumigated wooden drum.
