GYXTW is an armoured outdoor fibre cable for duct, conduit and direct-burial runs between buildings and on FTTx builds. The fibres sit in a single gel-filled loose tube, wrapped in corrugated steel tape armour and a black UV- and moisture-resistant polyethylene jacket. Two embedded steel wires carry the pulling load.
Construction
- 2 to 24 fibres in one gel-filled central loose tube
- Corrugated steel tape (CST) armour
- Two embedded steel wire strength members
- Black UV- and moisture-resistant PE outer jacket
Why use it
- Steel tape armour protects against rodents, crushing and mechanical damage
- Steel wire strength members give high tensile and crush resistance
- Compact, light construction that is quick to pull and terminate
Typical uses
Inter-building backbone and campus links; duct, underground conduit and direct burial; FTTx feeder and distribution.
Optical characteristics
| Fibre Type | G.652 | G.655 | 50/125µm | 62.5/125µm | |
|---|---|---|---|---|---|
| Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Mechanical specifications
| Fibre Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
|---|---|---|---|---|---|---|
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Packing

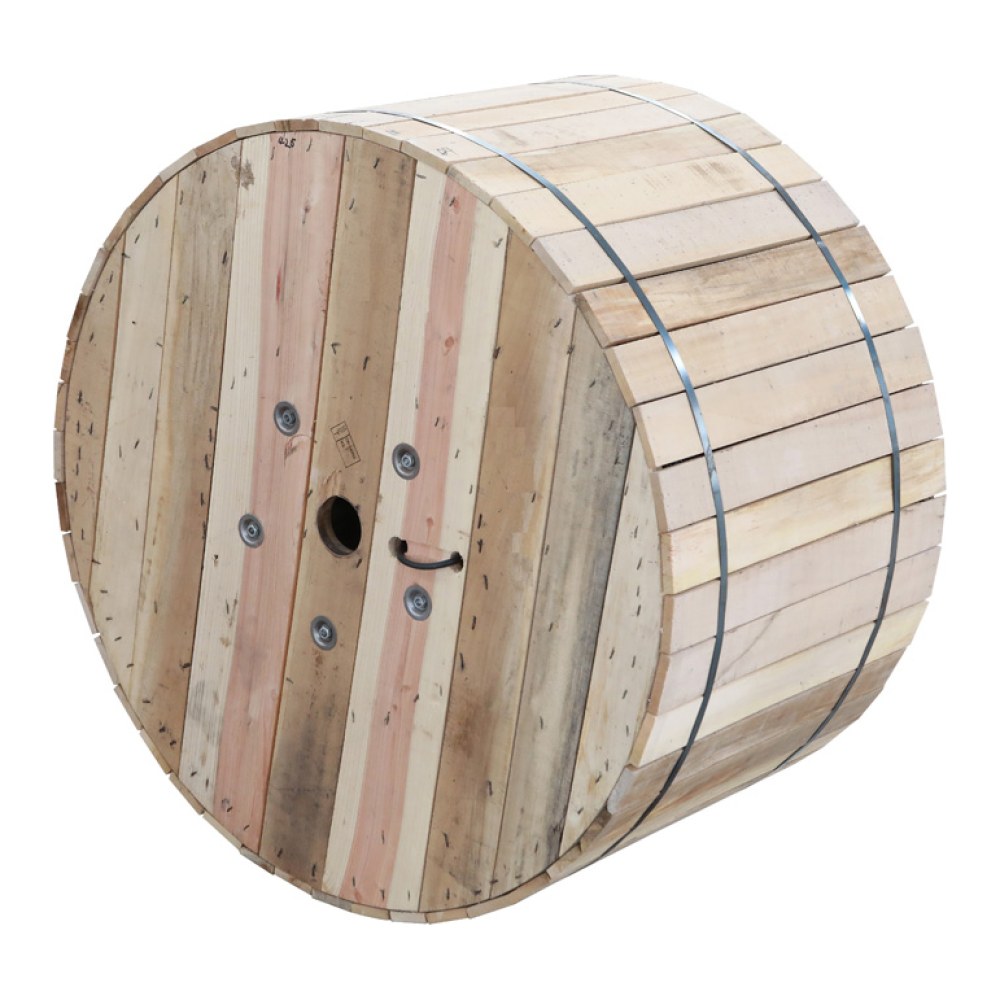

Plywood or fumigated wooden drum.
