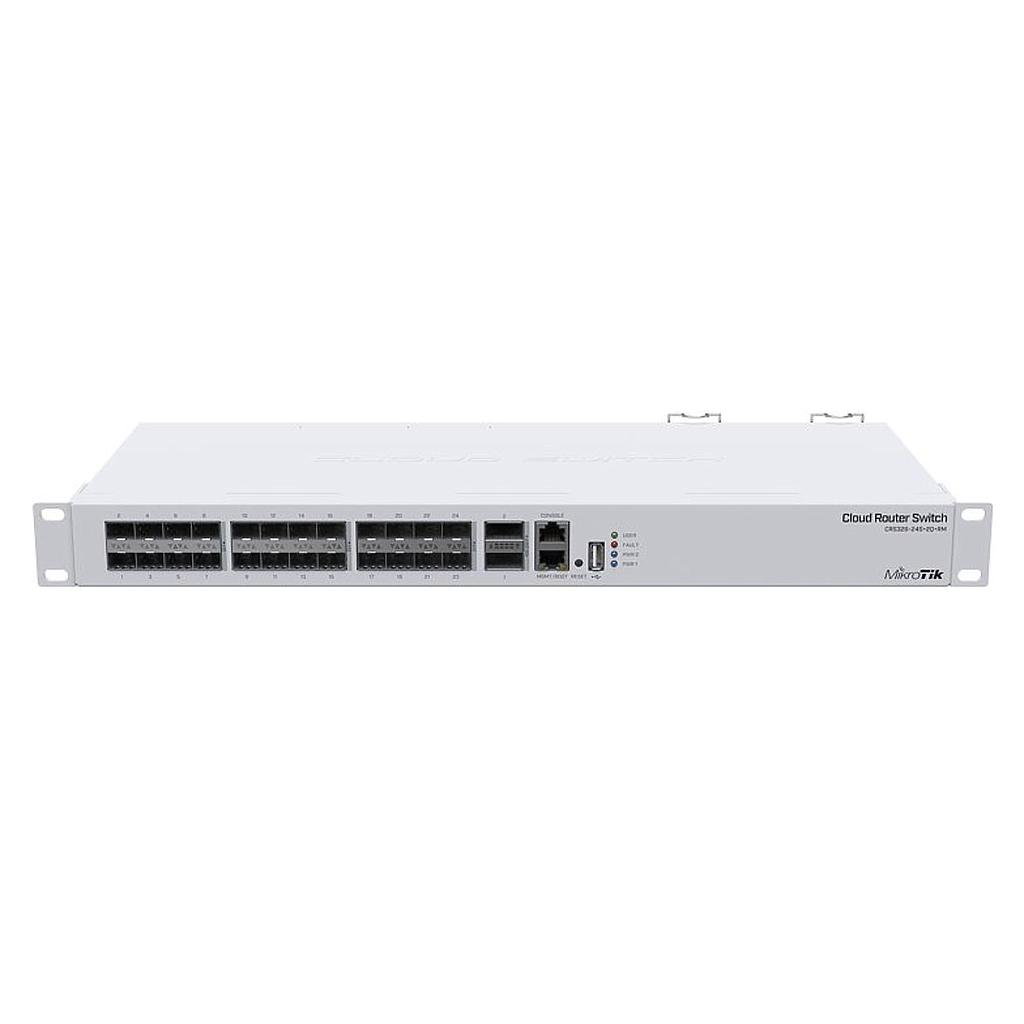

MikroTik CRS326-24S+2Q+RM 40Gpbs Switch 24 x SFP+, 2 x 40G QSFP

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Product code: CRS326-24S+2Q+RM

Architecture: MIPSBE

CPU: QCA9531

CPU core count: 1

CPU nominal frequency: 650 MHz

​Dimensions: 443 x 200 x 44 mm

RouterOS licence: 5

Operating System: RouterOS or SwitchOS

Size of RAM: 64 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -20°C to 60°C

Number of AC inputs: 2

AC input range: 100-240

Max power consumption: 69 W

Max power consumption without attachments: 42 W

Cooling type: 3 fans​

10/100 Ethernet ports: 1

SFP+ ports: 24

Number of 40G QSFP+ ports: 2

Serial console port: RJ45

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A

Max USB current (A): 1​

Certification: CE, EAC, ROHS

IP: IP20
