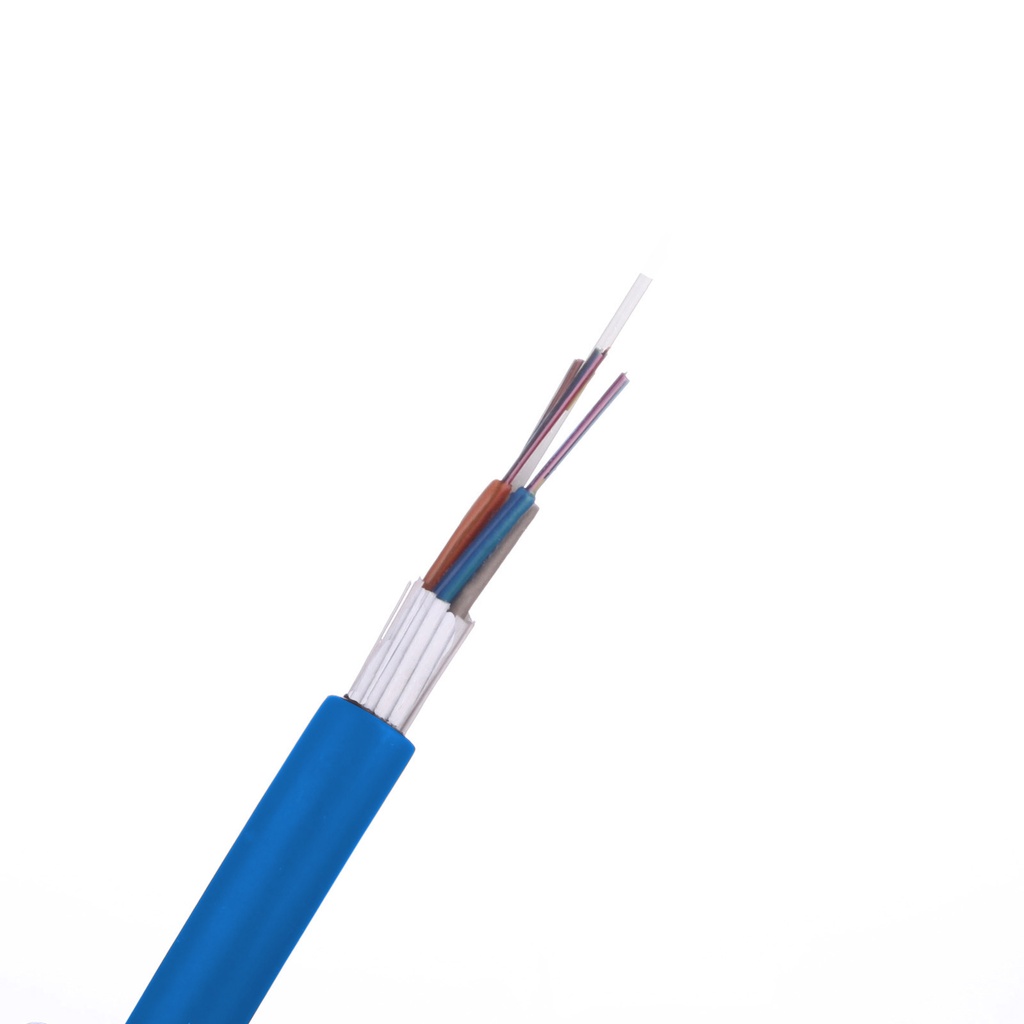

A 144-core external loose tube single mode optical fibre cable, built on ITU-T G.652.D fibre for underground duct and conduit runs, or aerial lashed installation.
The gel-filled loose tube construction isolates the fibres from cable strain and blocks moisture ingress along the cable. Its all-dielectric, non-metallic build carries no metallic element, so it needs no earthing and is unaffected by lightning strike or induced voltage near power infrastructure.
Specifications
- Fibre count: 144 core
- Fibre type: ITU-T G.652.D single mode
- Construction: stranded loose tube, gel filled, all-dielectric
- Strength member: FRP (fibre reinforced plastic), non-metallic
- Maximum fibres per loose tube: 12
- Loose tubes and fillers: 12
- Nominal outside diameter: 14 mm
- Nominal weight: 204 kg/km
- Tensile load: 1800 N short term, 600 N long term
- Crush resistance: 1000 N/100 mm short term, 300 N/100 mm long term
- Minimum bend radius: 10 x cable diameter static (140 mm), 20 x cable diameter dynamic (280 mm)
- Operating temperature: -40 to +60 degrees C
- Jacket: single jacket HDPE
- Installation: underground duct / conduit, or aerial lashed
- Sold per metre
