Product Features
- Supports up to 10.7Gbps bit rates
- Hot-pluggable SFP+ footprint
- 1330nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
- Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
- Compatible with RoHS
- Single +3.3V power supply
- Real Time Digital Diagnostic Monitoring
-
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
- 10Gbps Optical systems
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- LTE systems
-
Other Optical links
Product Description

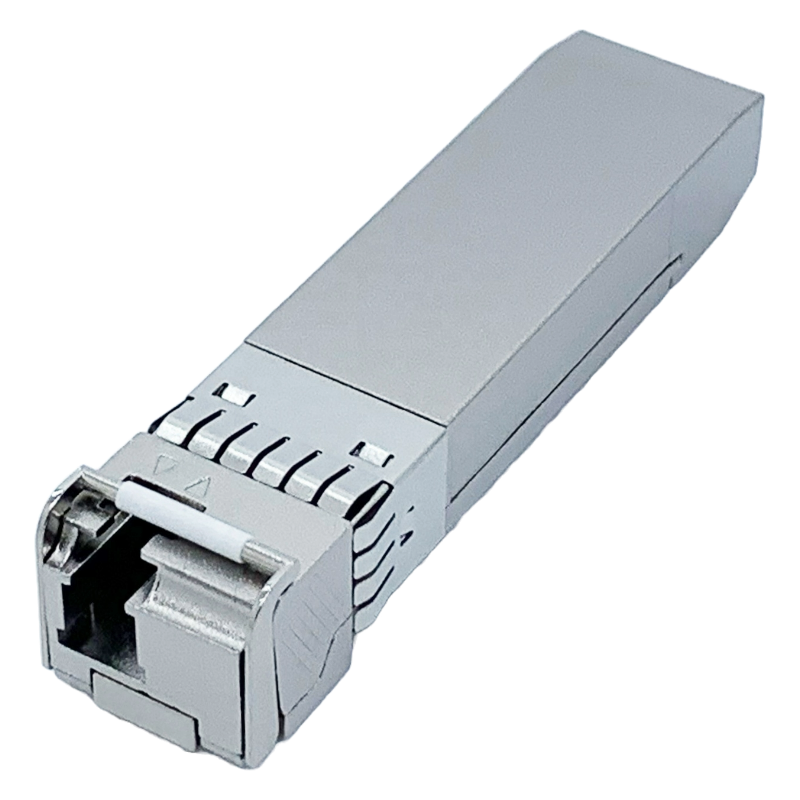

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps
and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics
functions.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| 10Gbps SFP+ | 20Km BIDI 1330nm TX / 1270nm RX or 20Km BIDI 1270nm TX / 1330nm RX or 20Km Duplex |
