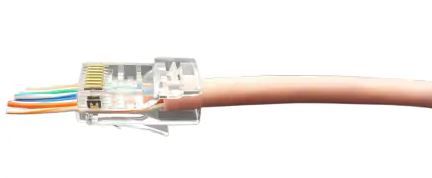

UTP RJ45 Insta Crimp Plug
Product Overview:
The CAT6 UTP RJ45 Insta Crimp Plug, available in a convenient 100-pack, is designed to simplify and optimize twisted pair cable termination. These plugs are specifically engineered to work seamlessly with the Insta Crimp Tool (001.006.0520). By using these plugs and the compatible tool, technicians can achieve reliable and efficient network cable terminations.
Key Features and Specifications:
RoHS Compliant: These plugs are RoHS compliant, ensuring they meet environmental and safety standards.
Gold-Plated Contacts: The plugs feature 50-micron gold-plated contacts, which enhance signal quality and reduce the risk of corrosion.
Suitable for Solid and Stranded Core Cables: These plugs are suitable for both solid and stranded core cables, offering versatility in your cable termination projects.
Certifications: They are certified to meet UL (Underwriters Laboratories) standards, IEC 60603-7, and are FCC compliant.
UL Applications: Suitable for UL applications up to Max. 250V and 2Amps.
Dielectric Withstanding Voltage: Can withstand a voltage of 1000V AC, ensuring electrical safety.
Insulation Resistance: Offers high insulation resistance of 100MΩ.
Termination Resistance: Maximum termination resistance of 20mΩ, ensuring strong and reliable connections.
Instructions for Use:
To use these Insta Crimp Plugs effectively with the Insta Crimp Tool, follow these steps:
Strip the outer cable sheath approximately 30mm.
Cut off any separator or nylon string flush with the cable sheath, taking care not to nick the conductors.
Fan out the 8 wires and arrange them in the color code 568A. Ensure the 8 wires are flat and neatly lined up next to one another.
Insert the wires through the crimp tool with excess wire protruding out the front.
Insert the plug into the correct position on the crimping tool.
Squeeze the tool firmly; this will terminate the wires and cut off any excess cable length.
